Zincate Process for Aluminum Alloys

Zincating is an indispensable displacement pre-treatment process prior to electroplating on aluminum alloys. Aluminum is highly chemically active and instantly forms a dense, insulating aluminum oxide film when exposed to air. Direct electroplating of copper, nickel or chromium will lead to full peeling of coatings. Using an alkaline zincate bath, zincating in-situ deposits an ultra-thin conductive zinc alloy interlayer on aluminum parts. This barrier prevents re-oxidation by air and creates an adherent substrate for subsequent electroplating.

This process relies on electroless displacement, requiring no external electric current. Zinc metal spontaneously precipitates out simply due to the difference in metallic activity between aluminum and zinc.

Strong alkaline zincate solutions dominate commercial bath systems, consisting primarily of sodium hydroxide (strong alkali) and zinc oxide (zinc source). Industrial formulations add nickel, copper, iron and complexing agents to form quaternary Zn-Ni-Cu-Fe alloy films, which improve layer density and coating adhesion. Two main bath categories are available: traditional cyanide-containing and eco-friendly cyanide-free systems.

Single Zincate vs Double Zincate (Two Main Industrial Processes)

1. Single Zincate

· Process flow: One single immersion in zincate solution, no intermediate zinc stripping step

· Microstructure: Coarse, needle-like zinc grains with abundant pores and voids

· Advantages: Shorter cycle time, higher throughput, lower production cost

· Applications: Pure aluminum, low-silicon aluminum alloys, general decorative components (heat sinks, simple casings), scenarios with moderate coating adhesion requirements

2. Double Zincate (Premium mainstream process)

· Process flow: Primary zincate immersion → Nitric acid zinc stripping → Secondary thin zincate immersion

· Mechanism: The first zincating step removes surface oxides and contaminants yet yields a rough, porous zinc film. Stripping this coarse zinc layer with nitric acid reveals a uniform, clean aluminum-rich surface. The secondary deposition produces ultra-fine, continuous pore-free zinc grains.

· Performance benefits: 2–3 times stronger adhesion, tensile strength up to 28.5 MPa, excellent thermal shock and humidity resistance without peeling, and mitigated risk of intergranular corrosion.

· Applications: Die-cast aluminum (high-silicon AlSi alloys), automotive wheel hubs, electronic connectors, aerospace components, medical precision parts, multi-layer plated products (pyrophosphate copper, semi-bright nickel, hard/decorative chrome plating)

Core Functions of Zincate Interlayer

1. Suppress re-formation of aluminum oxide: Isolate the substrate from air to stop rapid re-growth of insulating oxide film on aluminum surfaces.

2. Serve as an adhesion bridge for electroplating: Metallic bonding forms between zinc and aluminum; zinc also exhibits excellent compatibility with copper, nickel and chromium coatings, eliminating the peeling issue of direct plating on aluminum.

3. Improve coating uniformity: The uniform conductive underlayer avoids edge burning and low-current-area missing plating in subsequent electroplating steps.

4. Buffer thermal stress: Alleviate the discrepancy in thermal expansion coefficients between aluminum substrate and electroplated metals, preventing blistering and cracking under alternating high/low temperature cycles.

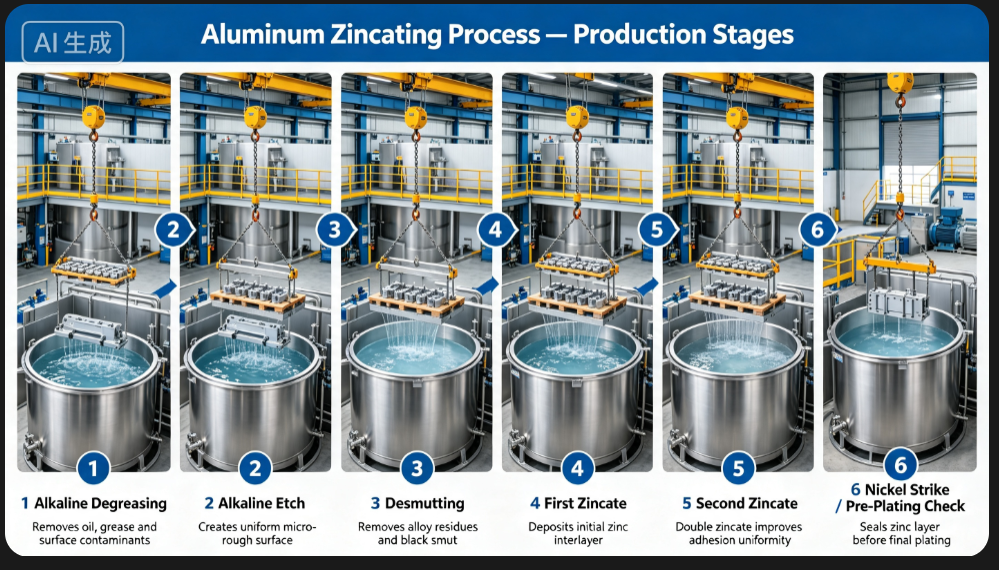

Standard Complete Process Flow

1. Alkaline soak degreasing: Remove stamping cutting oil and release agents, followed by water rinsing.

2. Alkaline etching (mild alkaline micro-etch): Light etching to eliminate native oxide scale and minor burrs, followed by water rinsing.

3. Bright dipping / desmutting (nitric acid immersion): Dissolve silicon smut and alloy residues generated during alkaline etching to expose pure aluminum substrate, followed by water rinsing.

4. Zincating (core step)

· Single zincate: Ambient temperature 15–25°C, immersion time 45–60 seconds

· Supporting step for double zincate: 1:1 nitric acid stripping to dissolve the rough primary zinc film and deeply activate aluminum substrate, then thorough DI water rinsing

· Secondary zincate: Immerse for 20–30 seconds in the same bath or dedicated dilute zincate solution to obtain a thin, fine-grained, compact zinc layer

5. DI water spray rinsing, then immediately transfer parts to pre-copper plating or electroless nickel plating. Avoid exposing workpieces to air to prevent oxidation.
